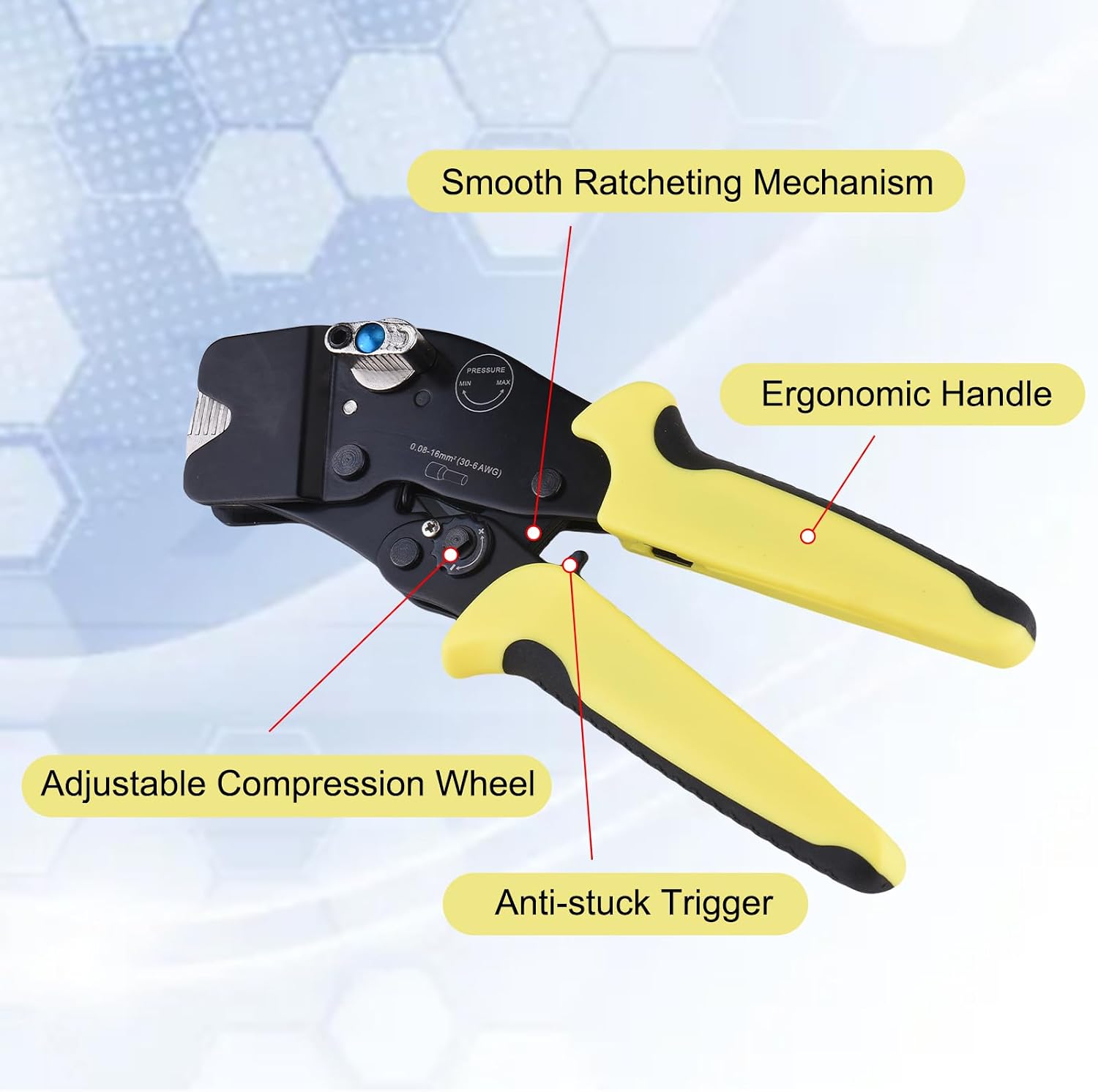

Hilitand Ratcheting Crimping Tool Heavy Duty Steel Crimping Pliers with Ergonomic Grip for Wire Terminals 25mm Electrical Connectors Crimps

Spec: Item Type: Crimping Tool Material: Steel Applicable Range: 0.08–16mm² (30–6 AWG) Package Size: Approx. 27*9*5cm/10.63*3.54*1.97in Package Weight: 557g/1.23lb Package List: 1 x Crimping Tool How To Use: Preparation: 1.1 Ensure the cable and terminal are properly stripped and cleaned, with no oxidation or damage to the conductors. 1.2 Select the appropriate die for the crimping tool based on the cable size and terminal type. 2. Installing the Die: 2.1 Adjust the crimping tool’s die to match the cable and terminal. 2.2 For ratchet-type crimpers, ensure the ratchet mechanism is functioning correctly. 3. Inserting the Cable and Terminal: 3.1 Insert the stripped conductor into the crimping slot of the terminal or connector, ensuring full insertion without exposure or looseness. 3.2 Place the terminal or connector into the crimper’s die, aligning it with the crimping position. 4. Applying Pressure: 4.1 Manual Crimper: Grip the handles firmly and close the tool until the die fully crimps the terminal and cable. 4.2 Ratcheting Crimper: Slowly squeeze the handles—the ratchet mechanism will apply pressure in stages. When the required pressure is reached, the ratchet will "click" or lock, indicating completion. 5. Checking Crimp Quality: 5.1 After crimping, inspect the connection for security, ensuring the conductor is fully seated in the terminal. 5.2 Verify there is no looseness or damage; perform a pull test if necessary to confirm reliability. 6. Completion: 6.1 Release the handles and remove the crimped terminal and cable. 6.2 Repeat the steps if multiple crimps are required.

• [HEAVY DUTY STEEL CONSTRUCTION] Built from solid steel this crimping tool is engineered for maximum durability and longevity. It withstands the rigors of daily professional use as well as demanding DIY projects providing reliable performance year after year.
• [EXTENDED CRIMPING CAPACITY] This tool excels by crimping terminals up to 25mm (0.98 inches) in length far surpassing the typical 12mm limit of standard crimpers. This expanded capacity allows you to handle a much wider variety of wire terminals and electrical connectors making it the only crimping tool youll need for most automotive marine industrial and home electrical applications.
• [AUTOMATIC RATCHET MECHANISM] The integrated heavy duty ratchet system is a game changer. It automatically locks and applies the perfect amount of pressure based on the wire size guaranteeing a secure and consistent crimp every single time.
• [RELEASE LEVER] A conveniently placed lever on the handle allows you to instantly disengage the jaws after each crimp. This feature dramatically speeds up your workflow during repetitive tasks saving valuable time and effort. It also prevents hand strain from manually prying the tool open making your crimping sessions smoother and more efficient.
• [ERGONOMIC COMFORT GRIPS] Designed with user comfort as a priority the handles feature soft ergonomic grips that provide superior control and reduce hand fatigue during extended use. The comfortable non slip design ensures a secure hold in various working conditions allowing both professionals and hobbyists to work longer with greater precision and less discomfort.
